Spring AI Structured Output: Convert LLM Responses to Java POJOs

Stop parsing LLM text by hand. Learn Spring AI structured output with entity(), records, Lists and Maps, plus 2.0 retries that fix bad JSON automatically.

1. Introduction

LLMs love to talk. Your Java code, on the other hand, loves types. Spring AI structured output is the bridge between these two worlds. It turns a chatty LLM reply into a clean Java record that the rest of your code can use.

In the earlier articles of this series, we built our first ChatClient and then connected multiple chat models. In all those examples, we ended the call with content(). That gave us a plain String. It works well for a chatbot screen. However, it is not enough when your code must read a field, save a value or take a decision.

In this guide, we will fix that. We will use Spring AI 2.0.1, the latest stable release at the time of writing.

By the end of this guide, you will know:

• why plain text responses create problems in real apps
• how Spring AI turns a Java class into format instructions for the LLM
• how to get a single POJO, a List and a Map back with entity()
• the role of BeanOutputConverter, MapOutputConverter and ListOutputConverter
• the new Spring AI 2.0 switches: validateSchema() and useProviderStructuredOutput()
• common mistakes that break parsing in production

Let us get started.

2. Why Do We Need Structured Output?

Let me start with the basic problem. Once you see it clearly, the rest of the article will make more sense.

2.1 LLMs Return Plain Text

An LLM is a text-in, text-out system. You send a prompt, and it sends back a string. Even when you ask for JSON, the model only tries its best. Nothing forces it to follow your format.

Here is a small example. Suppose you ask, “Give me three big cities in India.” You may get a numbered list. The next time, you may get a friendly paragraph. Sometimes you even get a line like “Sure! Here are the cities:” before the actual answer.

For a human reader, all three replies are fine. For your code, each one needs different parsing logic.

2.2 Structured Data Is Easier to Use

In real applications, we usually need structured data such as:

• JSON, for REST APIs and message queues
• XML, for older enterprise systems
• Java classes (POJOs or records), for business logic

Structured data is easy to parse, validate and store. It also fits nicely into the code you already have. For instance, you can save a record with Spring Data JPA. You can also return it straight from a REST controller.

2.3 A Real-World Example

Let me share a case from my own work. I have spent many years on banking and payments integrations. In one project, the support team received hundreds of emails about failed payments every day. Someone had to read each email, pick a category and set a priority.

An LLM can do this reading job very well. But a reply like “This looks like an urgent refund issue” is useless for a ticketing system. The system needs fields like category, priority and a short summary. In other words, it needs a typed object.

That is exactly the job of structured output. We will build this ticket example later in the article.

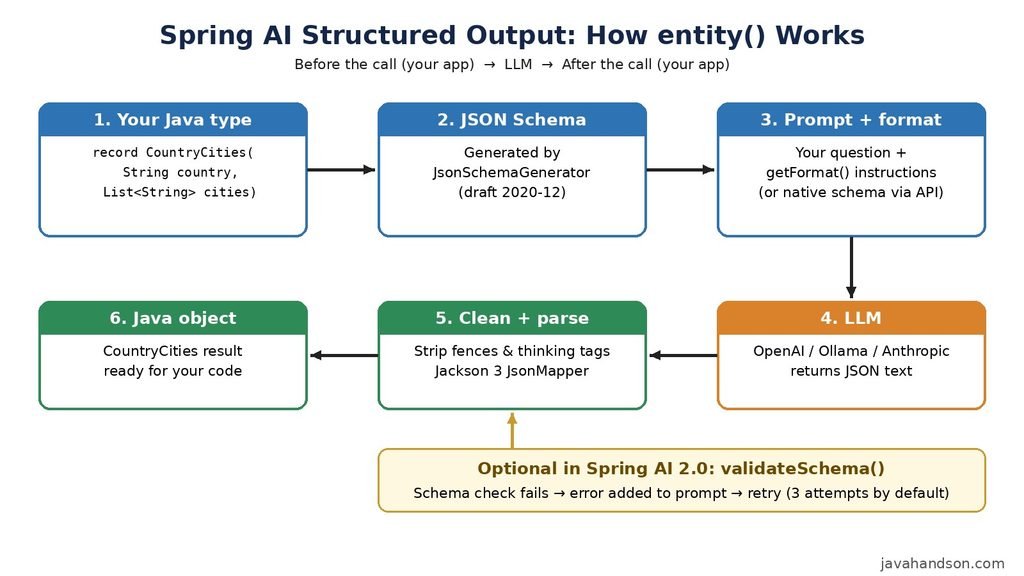

3. How Structured Output Works in Spring AI

Before writing code, let us understand what happens behind the scenes. The idea is simple, and it will help you debug problems later.

3.1 Before the Call: Format Instructions

First, Spring AI looks at your Java type. Then it generates a JSON Schema from that type. The schema follows the JSON Schema draft 2020-12 standard.

Next, it adds format instructions to your prompt. These instructions tell the model to reply only with JSON that matches the schema. So the model gets your question plus a clear description of the expected shape.

3.2 After the Call: Parsing Into Java

After the model replies, Spring AI takes the raw text. It cleans the text a little and then parses it with Jackson. In Spring AI 2.0, this step uses a Jackson 3 JsonMapper.

Finally, you receive a ready Java object. You never touch the raw JSON yourself.

3.3 The StructuredOutputConverter Interface

The whole feature rests on one interface called StructuredOutputConverter. Here is how it looks in Spring AI 2.0.1:

public interface StructuredOutputConverter<T>
        extends Converter<String, T>, FormatProvider {

    default String getJsonSchema() {
        return NO_JSON_SCHEMA;
    }
}

public interface FormatProvider {
    String getFormat();
}

It combines two small jobs:

• FormatProvider gives the format instructions through getFormat(). This part runs before the LLM call.
• Converter<String, T> turns the reply text into your type through convert(). This part runs after the call.

The getJsonSchema() method is new in Spring AI 2.0. It exposes the schema so that the new reliability features can use it. We will cover those features in section 11.

3.4 The Built-in Converters

Spring AI ships with ready converters, so you rarely write your own:

• BeanOutputConverter converts the reply into a Java class, a record or a generic type like List<CountryCities>.
• MapOutputConverter converts the reply into a Map<String, Object>.
• ListOutputConverter converts a comma-separated reply into a List<String>.
• AbstractConversionServiceOutputConverter and AbstractMessageOutputConverter are base classes for custom converters.

Most of the time, you will not create these objects yourself. When you pass a class or a type reference to entity(), ChatClient uses BeanOutputConverter behind the scenes.

4. Project Setup

Let us set up a small Spring Boot project. I will use OpenAI here. But the same code works with Ollama, Anthropic, Gemini and other providers.

4.1 Add the Dependencies

Spring AI 2.x is built on Spring Boot 4 and Spring Framework 7. Java 17 is the minimum version. So create a Spring Boot 4 project first. Then add the Spring AI BOM and the starters:

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.ai</groupId>
            <artifactId>spring-ai-bom</artifactId>
            <version>2.0.1</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-webmvc</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-starter-model-openai</artifactId>
    </dependency>
</dependencies>

The BOM keeps all Spring AI modules on the same version. As a result, you do not need a version number for each starter.

4.2 Configure the Model

Now add these properties to application.properties:

spring.ai.openai.api-key=${OPENAI_API_KEY}
spring.ai.openai.chat.model=gpt-4o-mini

Keep the API key in an environment variable. Never commit it to Git.

4.3 Create the ChatClient

Spring Boot gives us an auto-configured ChatClient.Builder. We will use it to create one ChatClient bean in a configuration class. Then every controller and service can simply inject it.

@Configuration
public class ChatClientConfig {

    @Bean
    public ChatClient chatClient(ChatClient.Builder builder) {
        return builder
                .defaultOptions(OpenAiChatOptions.builder()
                        .temperature(0.2))
                .build();
    }
}

Notice the low temperature here. Structured output is an extraction job, not a creative one. So a low value keeps the answers focused and the JSON shape stable. Also note that in Spring AI 2.0, defaultOptions() takes the options builder itself. We do not call build() on it.

Now the controller just injects the ChatClient bean:

@RestController
@RequestMapping("/api")
public class StructuredOutputController {

    private final ChatClient chatClient;

    public StructuredOutputController(ChatClient.Builder builder) {
        this.chatClient = builder.build();
    }

    // endpoints from the next sections go here
}

All the endpoints in the next sections go inside this controller.

5. Convert an LLM Response to a Java Object

This is the most common use case. You define a Java type, and Spring AI fills it for you.

5.1 Define the Target Record

Records are a perfect fit here. They are short, immutable and easy to read. Let us create one:

public record CountryCities(String country, List<String> cities) {
}

5.2 Call entity() Instead of content()

Now add an endpoint. The only change from a normal chat call is the last method. We call entity() instead of content():

@GetMapping("/country-cities")
public CountryCities countryCities(@RequestParam String country) {
    return chatClient.prompt()
            .user(u -> u.text("Give me 5 popular cities in {country}.")
                        .param("country", country))
            .call()
            .entity(CountryCities.class);
}

That is all. Spring AI builds the schema, sends the instructions and parses the reply. Notice that we also used a prompt template with a {country} placeholder. It keeps user input separate from the prompt text.

5.3 Test the Endpoint

Run the app and call the endpoint:

curl "http://localhost:8080/api/country-cities?country=India"

You will get a response similar to this one:

{
  "country": "India",
  "cities": ["Mumbai", "Delhi", "Bengaluru", "Hyderabad", "Chennai"]
}

Since the controller returns a record, Spring MVC turns it back into JSON for the browser. Inside your service, though, it is a proper Java object. You can call countryCities.cities() and loop over it like any other list.

6. Convert to a List of Java Objects

Often you need many objects, not one. For example, you may want cities for three countries in a single call.

6.1 Why We Need ParameterizedTypeReference

Your first idea may be to write List<CountryCities>.class. Sadly, Java does not allow that.

The reason is type erasure. Java removes generic type details at runtime. So List<CountryCities> becomes just List. Spring then has no idea what should go inside the list.

ParameterizedTypeReference solves this problem. Its anonymous subclass keeps the full generic type. As a result, Spring can read the element type and build each item correctly.

6.2 The Code

@GetMapping("/countries-cities")
public List<CountryCities> countriesCities(@RequestParam String countries) {
    return chatClient.prompt()
            .user(u -> u.text("Give me 3 popular cities for each country: {countries}")
                        .param("countries", countries))
            .call()
            .entity(new ParameterizedTypeReference<List<CountryCities>>() {});
}

Do not forget the {} at the end. It creates the anonymous subclass that carries the type information. Without it, the code will not compile.

7. Convert to a Map

Sometimes you do not want to create a class at all. A quick lookup or a dynamic shape fits better in a Map.

7.1 A Typed Map

Here is a map from country name to a list of cities:

@GetMapping("/country-map")
public Map<String, List<String>> countryMap(@RequestParam String countries) {
    return chatClient.prompt()
            .user("Give me 3 cities for each country: " + countries
                    + ". Use the country name as the key.")
            .call()
            .entity(new ParameterizedTypeReference<Map<String, List<String>>>() {});
}

Again, ParameterizedTypeReference keeps the generic types for us.

7.2 A Free-Form Map

If you do not know the shape in advance, use Map<String, Object>. With ChatClient, a type reference does the job:

Map<String, Object> result = chatClient.prompt()
        .user("Give me an array of numbers from 1 to 9 under the key 'numbers'")
        .call()
        .entity(new ParameterizedTypeReference<Map<String, Object>>() {});

On the low-level ChatModel API, MapOutputConverter serves the same purpose. It asks the model for RFC 8259 compliant JSON and returns a Map<String, Object>.

Be careful with free-form maps, though. Every value comes back as Object, so you need casts later. For anything important, prefer a record.

8. Simple Lists with ListOutputConverter

For a plain list of strings, you do not need JSON at all. ListOutputConverter asks the model for comma-separated values. Then it splits the reply with Spring’s ConversionService.

@GetMapping("/flavours")
public List<String> flavours() {
    return chatClient.prompt()
            .user("List five popular ice cream flavours")
            .call()
            .entity(new ListOutputConverter(new DefaultConversionService()));
}

Here we pass a converter object instead of a class. Yes, entity() accepts that too. In fact, this is how you plug in custom converters, which we will see in section 13.

9. Guiding the Model with Annotations

The model only sees your JSON Schema. So a better schema gives you better answers. Jackson annotations are the easiest way to improve it.

9.1 Add Field Descriptions

Let us build the support ticket example from section 2.3. First, we need two enums and a record:

public enum Category { REFUND, FAILED_PAYMENT, CARD_BLOCKED, KYC, OTHER }

public enum Priority { LOW, MEDIUM, HIGH }

public record TicketAnalysis(
        @JsonPropertyDescription("Main issue category of the email")
        Category category,

        @JsonPropertyDescription("HIGH if money is stuck or deducted twice")
        Priority priority,

        @JsonPropertyDescription("One-line summary, maximum 20 words")
        String summary,

        @JsonPropertyDescription("Transaction reference if present in the email")
        @JsonProperty(required = false)
        String transactionRef) {
}

A few things are happening here:

• Enums restrict the answer to fixed values. The schema lists them, so the model cannot invent a new category.
• @JsonPropertyDescription adds a description to each field. It works like a mini prompt for that field.
• @JsonProperty(required = false) marks a field as optional. By default, Spring AI treats every field as required.

Now the endpoint:

@PostMapping("/tickets/analyse")
public TicketAnalysis analyse(@RequestBody String email) {
    return chatClient.prompt()
            .system("You are a support analyst for a payments company.")
            .user(email)
            .call()
            .entity(TicketAnalysis.class);
}

With this, a messy customer email becomes a clean object. Your ticketing system can store it straight away.

Here is a small tip. Use @JsonPropertyDescription for field descriptions, even if your project already uses Swagger. There is a reported GitHub issue where @Schema descriptions did not reach the entity() schema. The Jackson annotation works reliably.

9.2 Control the Property Order

By default, the schema follows the declaration order of your fields. If you want a different order, use @JsonPropertyOrder:

@JsonPropertyOrder({"category", "priority", "summary", "transactionRef"})
public record TicketAnalysis(
        Category category,
        Priority priority,
        String summary,
        String transactionRef) {
}

Why does order matter? Models write text from left to right. So asking for the category before the summary nudges the model to decide the category first. It is a small trick, but it helps with some models.

9.3 What the Schema Contains

In Spring AI 2.0, BeanOutputConverter uses the same JsonSchemaGenerator that tool calling uses. This brings a few useful defaults:

• every property is required unless you mark it optional
• additionalProperties is false, so the model is told not to add extra fields
• numbers and dates get format hints, like int64 for long and date-time for LocalDateTime

This alignment is new in 2.0. If you upgrade from 1.x, test your prompts again. The schema text may differ slightly from before.

10. Using BeanOutputConverter Directly

The entity() method is enough for most apps. Sometimes, however, you work with the low-level ChatModel API. In that case, you use the converter yourself.

10.1 See the Format Instructions

Let us print what Spring AI actually sends to the model:

BeanOutputConverter<CountryCities> converter =
        new BeanOutputConverter<>(CountryCities.class);

System.out.println(converter.getFormat());

The output starts like this, followed by the full JSON Schema:

Your response should be in JSON format.
Do not include any explanations, only provide a RFC8259 compliant JSON response following this format without deviation.
Do not include markdown code blocks in your response.
Remove the ```json markdown from the output.
Here is the JSON Schema instance your output must adhere to:

I strongly suggest you print this once for your own classes. It is the fastest way to understand why a model returns a certain shape.

10.2 Call ChatModel with a Template

Now let us use the converter with ChatModel and a PromptTemplate:

BeanOutputConverter<CountryCities> converter =
        new BeanOutputConverter<>(CountryCities.class);

String template = """
        Give me 5 popular cities in {country}.
        {format}
        """;

Prompt prompt = PromptTemplate.builder()
        .template(template)
        .variables(Map.of("country", "Japan", "format", converter.getFormat()))
        .build()
        .create();

Generation generation = chatModel.call(prompt).getResult();

CountryCities result = converter.convert(generation.getOutput().getText());

The {format} placeholder receives the instructions. After the call, convert() does the parsing. This is exactly what entity() does for you in one line.

11. Making Structured Output Reliable in Spring AI 2.0

Here is the honest truth. By default, the model is only asked to follow your schema. Most of the time, it does. Sometimes, however, it misses a required field, returns a wrong type or adds a friendly sentence. Then the parser throws an exception.

Spring AI 2.0 adds two switches for this. Both go into an optional second argument of entity().

11.1 Self-Correction with validateSchema()

The first switch validates the reply and retries on failure:

TicketAnalysis ticket = chatClient.prompt()
        .user(email)
        .call()
        .entity(TicketAnalysis.class, spec -> spec.validateSchema());

Here is the flow:

• First, the model replies.
• Spring AI validates the reply against the JSON Schema.
• If it passes, you get your object.
• If it fails, Spring AI adds the exact error to the prompt and calls the model again.

By default, it tries up to 3 times. Since the model sees the real error, the retry is not blind. It knows what to fix.

Behind the scenes, this uses StructuredOutputValidationAdvisor. You can register your own instance to change the attempts:

var validationAdvisor = StructuredOutputValidationAdvisor.builder()
        .outputType(TicketAnalysis.class)
        .maxRepeatAttempts(5)
        .build();

ChatClient chatClient = builder
        .defaultAdvisors(validationAdvisor)
        .build();

Keep one thing in mind. Every retry is another paid LLM call. The advisor adds up the token usage of all attempts, so your metrics show the real cost.

11.2 Provider-Native Structured Output

The second switch moves the schema from the prompt to the provider API:

TicketAnalysis ticket = chatClient.prompt()
        .user(email)
        .call()
        .entity(TicketAnalysis.class, spec -> spec.useProviderStructuredOutput());

Now the provider itself enforces the schema. The prompt also becomes shorter, because the format text is no longer needed.

According to the Spring AI 2.0 docs, OpenAI, Anthropic, Google GenAI, Mistral AI and Ollama support this feature. Spring AI checks whether the model options implement the StructuredOutputChatOptions interface. If they do not, it quietly falls back to the prompt-based approach.

The switch stays off by default for compatibility. Older models may reject the request. So test it with your exact model version before you turn it on.

To enable it for every call on a client, use the advisor parameter:

@Bean
ChatClient chatClient(ChatClient.Builder builder) {
    return builder
            .defaultAdvisors(AdvisorParams.ENABLE_NATIVE_STRUCTURED_OUTPUT)
            .build();
}

11.3 Combine Both Switches

Each switch solves a different problem. The native option prevents most bad replies. Meanwhile, the validation option catches the rest. So for critical flows, use both together:

TicketAnalysis ticket = chatClient.prompt()
        .user(email)
        .call()
        .entity(TicketAnalysis.class, spec -> spec
                .useProviderStructuredOutput()
                .validateSchema());

11.4 Watch Out for Top-Level Arrays on OpenAI

Here is a trap I want you to avoid. OpenAI’s native structured output does not accept a top-level JSON array. So a List<CountryCities> with useProviderStructuredOutput() fails with an API error.

The fix is easy. Wrap the list in a record:

public record CountryCitiesList(List<CountryCities> items) {
}

CountryCitiesList result = chatClient.prompt()
        .user("Give me 3 cities each for India, Japan and France")
        .call()
        .entity(CountryCitiesList.class, spec -> spec.useProviderStructuredOutput());

The default prompt-based flow has no such limit. Top-level lists work fine there.

11.5 Plan for the Final Failure

Even with both switches, a call can still fail. The model may repeat the same mistake. The provider may also time out. So always plan for the last failure.

public TicketAnalysis analyseSafely(String email) {
    try {
        return chatClient.prompt()
                .user(email)
                .call()
                .entity(TicketAnalysis.class, spec -> spec.validateSchema());
    } catch (Exception ex) {
        log.warn("Structured output failed, moving to manual queue: {}", ex.getMessage());
        return new TicketAnalysis(Category.OTHER, Priority.MEDIUM,
                "Needs manual review", null);
    }
}

In payments systems, we never let one bad parse block the whole flow. A safe default plus a manual review queue is a common pattern. It keeps the pipeline moving, and a human checks the odd cases later.

12. Getting Token Usage with responseEntity()

The entity() method returns only your object. But sometimes you also need metadata, like token usage for cost tracking. For that, use responseEntity():

ResponseEntity<ChatResponse, CountryCities> result = chatClient.prompt()
        .user("Give me 5 popular cities in India")
        .call()
        .responseEntity(CountryCities.class);

CountryCities cities = result.entity();
long totalTokens = result.response().getMetadata().getUsage().getTotalTokens();

Watch the import here. This ResponseEntity comes from org.springframework.ai.chat.client, not from Spring Web. In a controller, both names clash easily. So I usually keep this code inside a service class.

13. Handling Messy Output with a Custom Converter

Small local models are not always neat with their replies. Let us see what Spring AI handles for us and where we need to step in.

13.1 What the Default Converter Already Handles

The good news first. BeanOutputConverter already cleans common noise before parsing. It removes:

• extra whitespace around the reply
• thinking tags from reasoning models, such as some Qwen models
• markdown code fences like “`json

It also ignores unknown JSON fields instead of failing. So one extra field will not break your record.

13.2 When You Need Your Own Converter

However, the default cleaner cannot remove a full sentence before the JSON. A reply like “Here are the cities: { … }” still fails. Some small local models do this often.

In that case, write a lenient converter. It finds the JSON part and passes it to BeanOutputConverter:

public class LenientJsonOutputConverter<T> implements StructuredOutputConverter<T> {

    private static final Pattern JSON_BLOCK =
            Pattern.compile("(\\{[\\s\\S]*\\}|\\[[\\s\\S]*\\])");

    private final BeanOutputConverter<T> delegate;

    public LenientJsonOutputConverter(Class<T> type) {
        this.delegate = new BeanOutputConverter<>(type);
    }

    @Override
    public String getFormat() {
        return delegate.getFormat();
    }

    @Override
    public String getJsonSchema() {
        return delegate.getJsonSchema();
    }

    @Override
    public T convert(String source) {
        Matcher matcher = JSON_BLOCK.matcher(source);
        String json = matcher.find() ? matcher.group(1) : source;
        return delegate.convert(json);
    }
}

Then pass it to entity():

CountryCities result = chatClient.prompt()
        .user("Give me 5 popular cities in Italy")
        .call()
        .entity(new LenientJsonOutputConverter<>(CountryCities.class));

Notice that getJsonSchema() delegates too. Because of that, validateSchema() and useProviderStructuredOutput() still work with this converter.

You can use the same idea for non-JSON formats like YAML or CSV. Write your own getFormat() and convert(). Then leave getJsonSchema() at its default.

14. Structured Output and Streaming

This question comes up a lot. Can we use entity() with stream()?

The answer is no. Typed parsing needs the complete response. So entity() works only after call(). The stream() method gives you text chunks, not typed objects. The same rule applies when validateSchema() is active.

If you need both, stream the text to the UI for a live feel. Then make a separate call() with entity() for the data your code needs. In most business flows, though, a normal call() is simpler and good enough.

15. Best Practices and Common Mistakes

Let me share a few lessons that will save you debugging time.

15.1 Best Practices

• Prefer records over classes. They are short and immutable.
• Use enums for fixed values like status, category or priority.
• Add @JsonPropertyDescription to fields with unclear names.
• Keep the target type small. Deeply nested objects fail more often.
• Print getFormat() once and read the schema the model receives.
• Use validateSchema() for flows where a parsing failure hurts.
• Log the raw reply when parsing fails. The chatResponse() method helps here.
• Set a low temperature, like 0.2, for extraction tasks. Creative answers are not what you want here.

15.2 Common Mistakes

• Writing List<MyType>.class. Java does not allow it, so use ParameterizedTypeReference.
• Forgetting the {} after new ParameterizedTypeReference<…>().
• Calling entity() on stream(). Structured output works with call() only.
• Requesting a top-level List with useProviderStructuredOutput() on OpenAI.
• Using @Schema for descriptions and wondering why the model ignores them.
• Mixing up Spring AI’s ResponseEntity with Spring Web’s ResponseEntity.
• Trusting the output blindly. Always check business rules, like a positive amount, in your own code.

16. FAQ’s on Spring AI Structured Output

17. Conclusion

Spring AI structured output turns an LLM from a chatty assistant into a reliable data source. You define a record, call entity(), and get a typed Java object back.

Here is a quick recap:

• Call entity(MyRecord.class) for a single object.
• Pass a ParameterizedTypeReference for List and Map types.
• Use ListOutputConverter for simple comma-separated lists.
• Improve the schema with enums and @JsonPropertyDescription.
• Add validateSchema() and useProviderStructuredOutput() when correctness matters.
• Write a custom converter only when the model keeps wrapping JSON in text.

Start with the plain entity() call. Then add the reliability switches as your app moves toward production. This way, your code stays simple while your data stays clean.

17. Further Reading

• What Is Spring AI Framework: ChatClient & ChatModel with OpenAI
• Multiple Chat Models in Spring AI: OpenAI + Ollama Guide
• Message Roles in LLMs
• Prompt Templates in Spring AI
• Structured Output (Spring AI Reference)
• Output Converters (Spring AI Reference)
